Automatic Assembly Machine

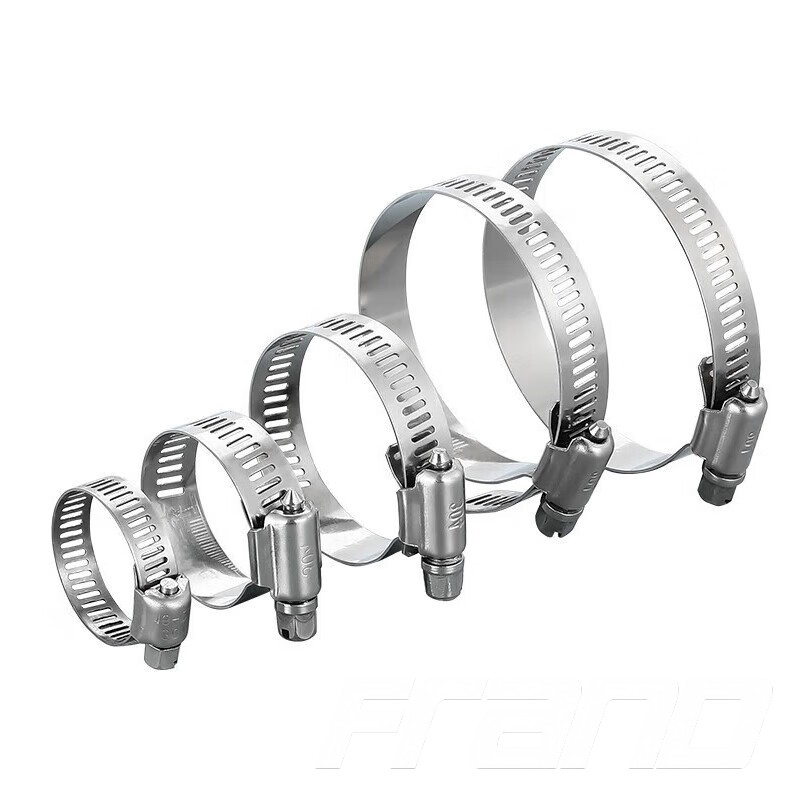

Large American hose clamp assembly machine
Large American hose clamp assembly machine

Large American hose clamp assembly machine

This equipment completes the automatic assembly, riveting, rolling, and screw locking of steel strips, hoop shells, and screws of large American-style throat hoops, and finally completes the production of finished products.

  • شروط الدفع :

    China
  • بلد المنشأ :

    1200pcs/hour
  • اللون :

    RAL7035
  • ميناء تسليم :

    FOB
  • تاريخ التسليم او الوصول :

    3-5 working days
  • الكمية :

    5000
  • دقيقة. الكمية النظام :

    1 Set
  • وزن :

    1T
  • model :

    FRAND-A-13
  • Packing :

    Wooden Box

Large American hose clamp assembly machine

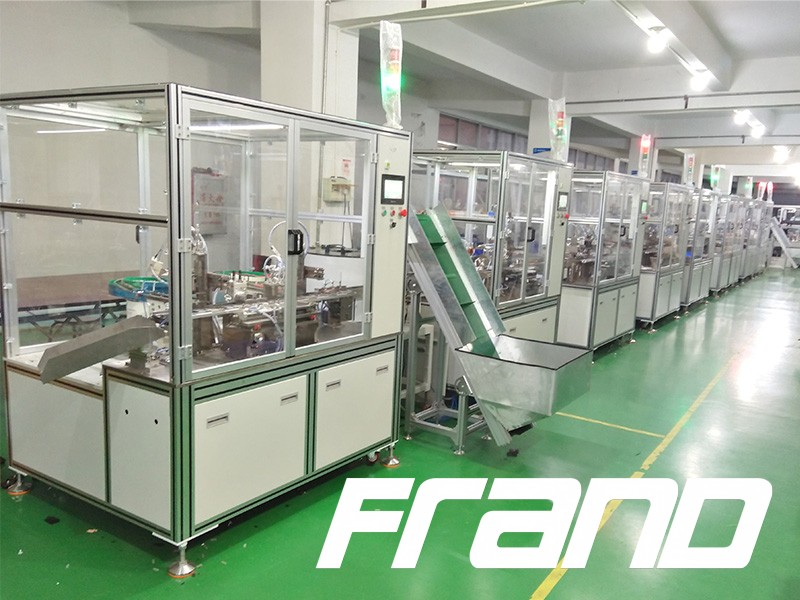

The large American-style hose hoop automatic assembly machine adopts automatic feeding of steel strips, hoop shells, and screws, and automatically completes the cutting, forming of steel strips, riveting of hoop shells, locking screws, locking circles, and blanking,Complete the automated production of finished products.

•   WORKFLOW

STEP1: The steel belt is fed accurately by servo motor, the length can be set, cut and formed by the mold.

STEP2: The hoop shell is automatically loaded by the vibrating plate, and assembled with the formed steel strip, riveted and rolled

STEP3: The screws are automatically loaded by the vibrating plate, and the screws are put into the hoop shell by the locking screw mechanism, and the belt is locked.

STEP4: After the assembly of the product is completed, the material is cut.

•  SPECIFICATION

Product name Hose clamp assembly machine
Size

1800mm(length)*1700mm(width)*1800(height)

Weight

1Ton

Working area

4000mm(length)*3000mm(width)

Strength

AC220v,50HZ

Pressure

0.5Mpa-0.7Mpa(72.5-101.5PSI)

Efficiency

1100pcs/hour

Service

One year
